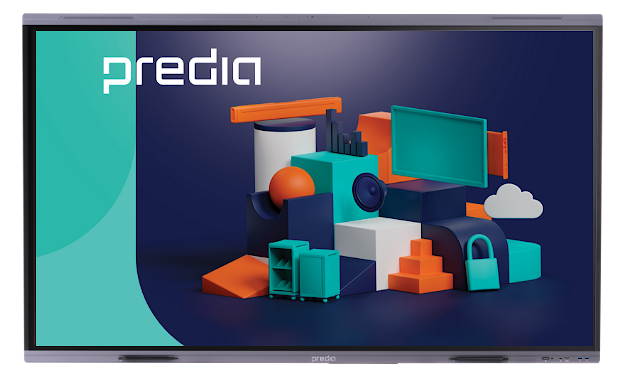

Predia Touch Swift 4

The Predia Touch Swift 4 touchscreen takes collaboration to a new level, in businesses, governments, and schools. It offers the most natural and accurate writing experience, unmatched speed and optimal connectivity.
Where to buy? More specifications

Available sizes:

65"
75"
86"

The benefits

  • Intelligent Touch technology

    Write your ideas on the screen naturally and accurately thanks to intelligent writing features such as near-zero delay, pressure sensitivity and palm rejection support. The screen registers up to 50 touch points, making it possible to write with several at once.

  • Powerful sound across the room

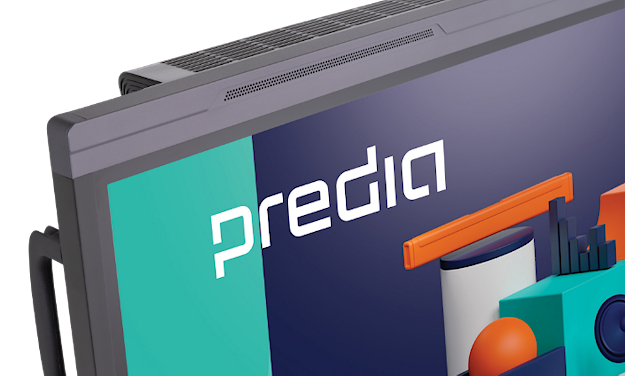

    The Predia Touch Swift 4 features a powerful sound bar at the top of the screen. The sound is spread throughout the entire room, giving everyone the best sound experience.

  • Top performance

    The screen features the secure Android 13 operating system and a super-fast 8-core CPU. This makes the screen 50% faster than previous generations.

  • Seamless connectivity

    The Predia Touch Swift 4 features multiple USB Type-C connection with multi-connectivity. With just one cable, you can not only connect your laptop, but also instantly connect all other connected devices such as a webcam, microphone and speakers. Play your videos in 4K and keep your laptop fully charged thanks to 100W of power split across 2 USB Type-C ports.

  • Beautifully clear image

    Razor-sharp image thanks to an anti-reflective finish and 400 nits brightness. The 4K display offers a perfect viewing experience in any room. Even in well-lit meeting rooms.

  • Ultra-fast built-in Wi-Fi

    Easily connect the screen to the latest Wi-Fi 6E by installing the Wi-Fi module at the bottom of the screen.

  • Energy-efficient

    The Predia Touch Swift 4 has low power consumption thanks to its eco-friendly design and the latest technologies.

  • Maximum security

    Thanks to the Predia Home OS operating system and the powerful Android 13 module, the screen will have optimal security and the latest updates for years to come.

  • Maximise productivity

    Take collaboration to the next level by connecting up to three displays with the Type-C and HDMI outputs. Create a comprehensive digital canvas and distribute your applications with the built-in display manager.

Discover the latest features in 20 seconds

Which touchscreen suits your situation?

Curious about the differences between our touchscreens? The Predia Touch Swift 3 and Touch Swift 4 are both packed with fantastic features, but they also have some distinctions. Compare them with each other and find the touchscreen that suits your situation.

Direct access to all your favorite apps?

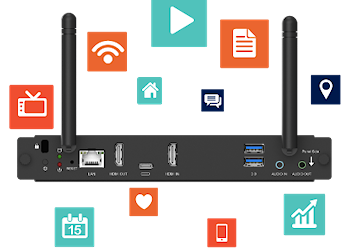

Expand your touchscreen with the Predia Android EDLA OPS for seamless integration with the entire Google and Microsoft 365 ecosystem. With one login, you can immediately start using the tools you need for your presentation, brainstorming session, or lesson.

Technical specifications

Display

Display Technology
LCD - Liquid Crystal Display DirectLED
Panel type
IPS ADS
Aspect ratio
16:9
Resolution
3.840 x 2.160 - 4K Ultra High Definition
Response time
8 ms
Refresh rate
60 Hz
Brightness
400 cd/m2
Colour depth
1.07B (10bit)
NTSC
72%
Air Gap
2nd generation zero bonding
Glass plate
Anti-reflection Nano-technology / antibacterial
Glass hardness
Mohs 7
Viewing angle
178° (H/V)
Lifetime
≥ 40.000 hours

Operating system

Operating system
Android™ 13.0
Software version
Predia Home OS 2.0
RAM
8 GB
ROM
64GB
CPU
High-End (A76x4+A55x4)
GPU
High-End (Mali G610 MP4)
Light sensor
Yes
Motion sensors (PIR)
Optional
NFC
Optional
Air Quality Meter
Optional
Over-the-Air-Updates (OTA)
Yes (5 year support)

Interactive touch

Technology
3th Generation IR Pro
Recognition
Finger, passive pen
Accuracy
± 1 mm
Touch points
50
Minimum object size
2 mm
Auto-calibration
Yes
Palm recognition
Yes
Simultaneous multi-colour writing
Yes
Writing in different thicknesses
Yes
Intelligent object recognition
Yes
Response time
≤ 2.5ms
Supported compatibility
Windows 11 / Windows 10 / Windows 8 / Windows 7 / Linux / Mac / Android / Chrome

General information

Product dimensions L×W×H
1488 × 908 × 86 mm / 1709.4 × 1031 × 85.7 mm / 1957 × 1171 × 86 mm
Packaging dimensions L×W×H
1628 × 208 × 1005 mm / 1863 × 225 × 1148 mm / 2110 × 225 × 1283 mm
VESA Pattern
600 × 400 / 800 × 400 / 800 x 600
Net weight
38 kg / 51 kg / 63 kg
Certificates
CE: EMC + LVD / / RoHS / REACH / WEEE/ FCC-IC / CB / RCM / TÜV Rheinland

Audio

Speakers
Full-fledged Soundbar at top of the screen (2.2 Sound)
Frontspeakers
2x 20 Watt
Subwoofer
2x 10 Watt
Amplifier power
108 Watt 8 Ω

Microphones

Type
Wide-area microphones
Number of microphones
8
Automatic switching
Yes
Deactivatable
Yes

Connections

HDMI 2.0
4 (up to 4K@60hz, HDCP 2.3, CEC)
HDMI OUT
1 (up to 4K@60hz)
USB 2.0
1
USB 3.0
4 (auto switch)
USB Type-C (full function)
1 x (100 Watt , USB 3.2, Video DP1.2, Audio, Touch , LAN), 1 x (15 Watt, USB 3.2, Video DP1.2, Audio, Touch, LAN)
USB Typ -C out
1 (4K@60hz)
USB B Touch
2
DP IN
1 (DPI 2)
AUDIO IN
1
AUDIO OUT
1
SPDIF
1
RS232
1
LAN Port IN
1 (1000 MBit/s)
LAN Port OUT
1 (1000 MBit/s)
PC-Modul Slot
80-Pins OPS Slot

Environmental conditions

Operating temperature
0℃° - 40°C
Operating humidity
10% - 90% RH (no condensation)
Storage temperature
Min 20°C tot 40°C
Storage humidity
10% - 90% RH (no condensation)
Maximum operating height
5000 meter

Electrical characteristics

Current voltage
100 V - 240 V ~ 50 Hz / 60 Hz 4.5 A
Nominal energy consumption
109.2 W / 128.9 W / 142.5 W
Standby consumption
≤ 0.5 W
